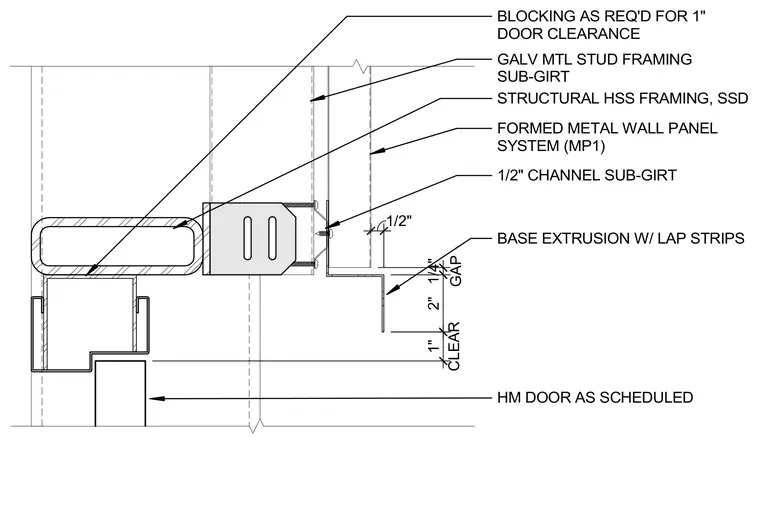

A door head condition intersects a roof screen assembly with structural hollow structural section framing and galvanized metal stud framing. A hollow metal door is set below the structural frame, allowing for required door clearance and blocking. A formed metal wall panel system is supported by a one-half-inch channel sub-girt and a base extrusion with lap strips, maintaining specific clearance and gap dimensions.
1/2" CHANNEL SUB-GIRT FORMED METAL WALL PANEL SYSTEM (MP1) STRUCTURAL HSS FRAMING, SSD GALV MTL STUD FRAMING SUB-GIRT BASE EXTRUSION W/ LAP STRIPS 2" GAP 1/4" 1/2" HM DOOR AS SCHEDULED BLOCKING AS REQ'D FOR 1" DOOR CLEARANCE CLEAR 1"
