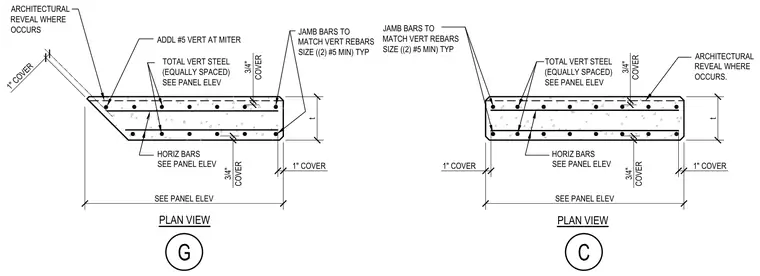

This plan view details the reinforcing bar arrangement and concrete cover for a precast concrete panel. Vertical steel and horizontal bars are positioned per the panel elevation, with jamb bars sized to a minimum of two number five bars typically. Concrete cover is maintained at one inch on the outer faces and three quarters of an inch internally. Additional number five vertical reinforcement is provided at mitered corners alongside architectural reveals.
C ARCHITECTURAL REVEAL WHERE OCCURS. t TOTAL VERT STEEL (EQUALLY SPACED) SEE PANEL ELEV HORIZ BARS SEE PANEL ELEV SEE PANEL ELEV 1" COVER JAMB BARS TO MATCH VERT REBARS SIZE ((2) #5 MIN) TYP t G HORIZ BARS SEE PANEL ELEV SEE PANEL ELEV 1" COVER 3/4" COVER 3/4" COVER 1" COVER 1" COVER 3/4" COVER 3/4" COVER ARCHITECTURAL REVEAL WHERE OCCURS JAMB BARS TO MATCH VERT REBARS SIZE ((2) #5 MIN) TYP ADDL #5 VERT AT MITER TOTAL VERT STEEL (EQUALLY SPACED) SEE PANEL ELEV PLAN VIEW PLAN VIEW
