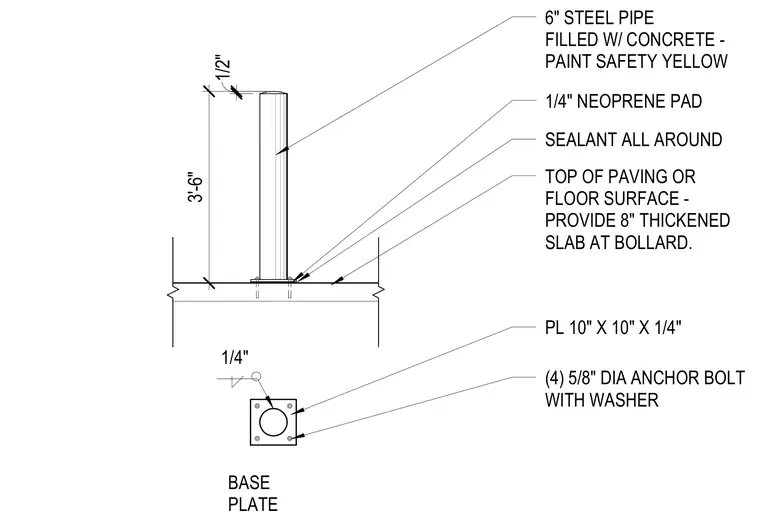

A six-inch steel pipe is filled with concrete and painted safety yellow, standing three feet six inches high above the floor surface. The pipe is welded to a ten-inch by ten-inch by one-quarter-inch steel base plate, which sits on a one-quarter-inch neoprene pad with sealant applied all around. Four five-eighths-inch diameter anchor bolts with washers secure the base plate to an eight-inch thick concrete slab.
6" STEEL PIPE FILLED W/ CONCRETE - PAINT SAFETY YELLOW TOP OF PAVING OR FLOOR SURFACE - PROVIDE 8" THICKENED SLAB AT BOLLARD. PL 10" X 10" X 1/4" (4) 5/8" DIA ANCHOR BOLT WITH WASHER BASE PLATE 1/4" 3'-6" 1/2" 1/4" NEOPRENE PAD SEALANT ALL AROUND
