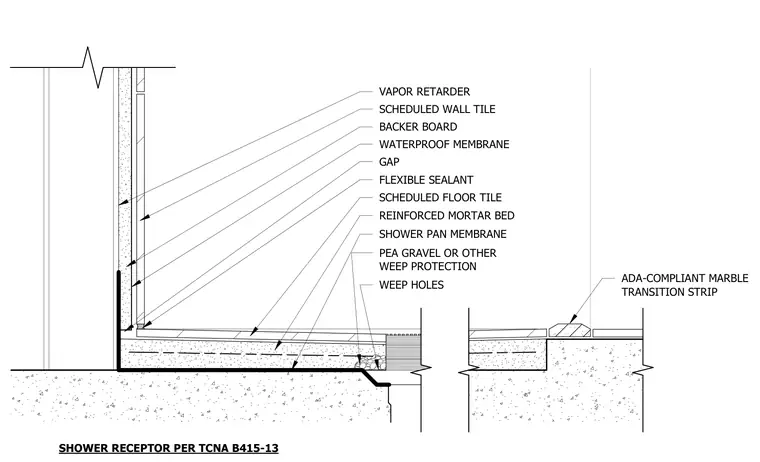

The shower wall assembly consists of a vapor retarder, backer board, and waterproof membrane finished with scheduled wall tile. The floor receptor is built over a reinforced mortar bed with a shower pan membrane, weep holes, and pea gravel or other weep protection, finished with scheduled floor tile. A flexible sealant fills the gap at the wall-to-floor junction. An ADA-compliant marble transition strip is provided at the threshold separating the shower floor from the adjacent finished floor.
SHOWER PAN MEMBRANE SCHEDULED FLOOR TILE REINFORCED MORTAR BED FLEXIBLE SEALANT GAP SCHEDULED WALL TILE SHOWER RECEPTOR PER TCNA B415-13 PEA GRAVEL OR OTHER WEEP PROTECTION WEEP HOLES BACKER BOARD WATERPROOF MEMBRANE VAPOR RETARDER ADA-COMPLIANT MARBLE TRANSITION STRIP
