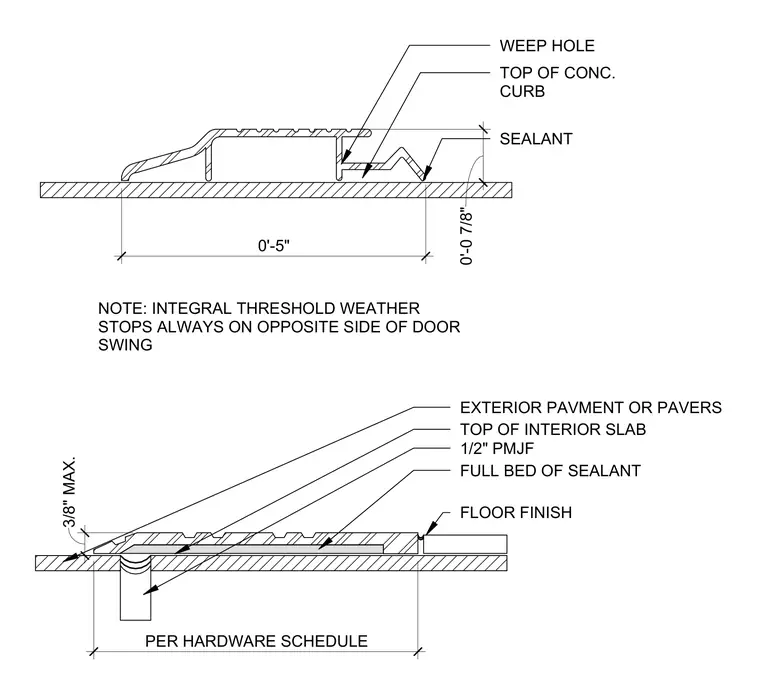

An exterior door threshold assembly transitions between the interior floor finish and exterior pavement or pavers. The threshold sits over a concrete curb with an integral weep hole and a full bed of sealant. A one-half-inch premolded joint filler is positioned near the interior slab transition. Integral weather stops are placed on the opposite side of the door swing. Sealant is applied per the hardware schedule with a three-eighths-inch maximum dimension.
0'-5" 0'-0 7/8" WEEP HOLE TOP OF CONC. CURB NOTE: INTEGRAL THRESHOLD WEATHER STOPS ALWAYS ON OPPOSITE SIDE OF DOOR SWING SEALANT PER HARDWARE SCHEDULE 3/8" MAX. FULL BED OF SEALANT EXTERIOR PAVMENT OR PAVERS FLOOR FINISH 1/2" PMJF TOP OF INTERIOR SLAB
