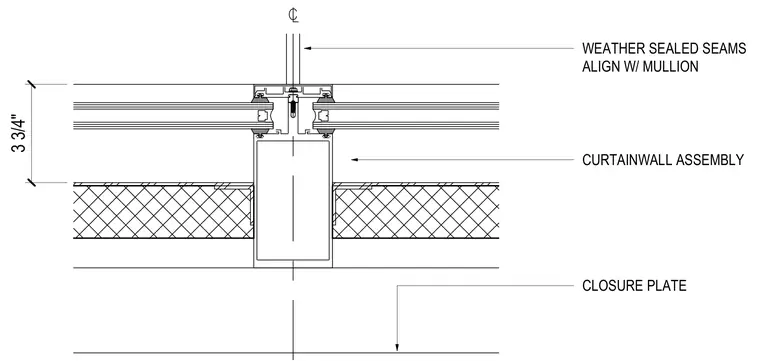

The curtain wall assembly incorporates a mullion aligned with three-and-three-quarter-inch weather-sealed seams. A closure plate finishes the junction beneath the assembly. Gaskets secure the glazing panels within the aluminum framing profiles.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
