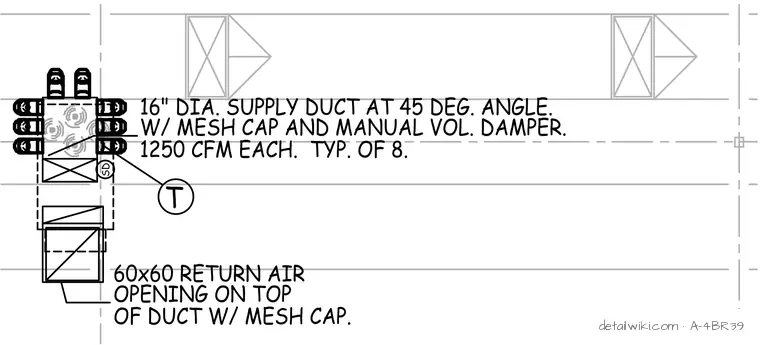

Sixteen-inch diameter supply ducts oriented at a forty-five-degree angle, each equipped with a mesh cap and a manual volume damper. These supply ducts are rated for twelve hundred and fifty cubic feet per minute each, with eight units typical. A sixty-by-sixty-inch return air opening is positioned on top of the main duct and is also fitted with a mesh cap.
Text on the drawing
SD 60x60 RETURN AIR OPENING ON TOP OF DUCT W/ MESH CAP. WHP 17 16" DIA. SUPPLY DUCT AT 45 DEG. ANGLE. W/ MESH CAP AND MANUAL VOL. DAMPER. 1250 CFM EACH. TYP. OF 8. T
