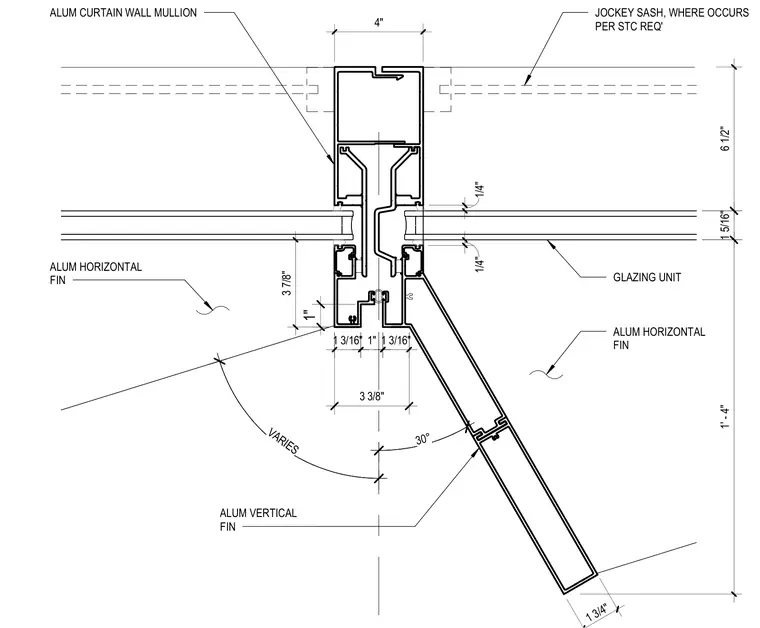

An aluminum curtain wall mullion supports glazing units with exterior aluminum horizontal and vertical fins at a 30-degree angle. A jockey sash is included where required per sound transmission class requirements. The system is detailed with specific profile dimensions, including a 4-inch mullion width and 5/16-inch glazing thickness.
GLAZING UNIT ALUM HORIZONTAL FIN ALUM CURTAIN WALL MULLION ALUM VERTICAL FIN ALUM HORIZONTAL FIN 1' - 4" 1 5/16" 6 1/2" 3 3/8" 1 3/4" 3 7/8" 4" VARIES 30° 1/4" 1/4" 1 3/16" 1" 1 3/16" 1" JOCKEY SASH, WHERE OCCURS PER STC REQ'
