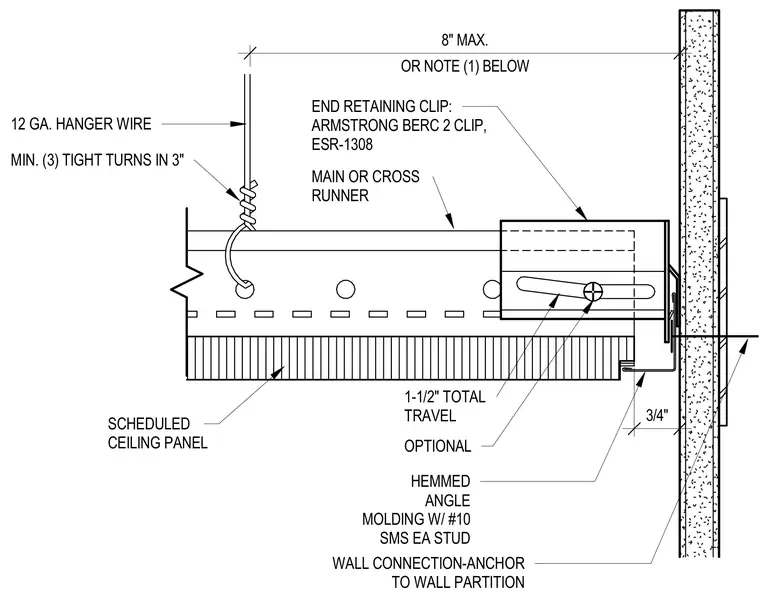

An acoustic ceiling suspension grid terminates at an unattached wall partition using an optional Armstrong BERC 2 end retaining clip allowing one and one-half inches of total travel. The main or cross runner is supported by a twelve-gauge hanger wire secured with a minimum of three tight turns in three inches. A hemmed angle molding connects to the wall partition using number ten sheet metal screws at each stud. Scheduled ceiling panels complete the interior finish up to the wall boundary.
MIN. (3) TIGHT TURNS IN 3" 12 GA. HANGER WIRE MAIN OR CROSS RUNNER HEMMED ANGLE MOLDING W/ #10 SMS EA STUD WALL CONNECTION-ANCHOR TO WALL PARTITION SCHEDULED CEILING PANEL OR NOTE (1) BELOW 8" MAX. OPTIONAL END RETAINING CLIP: ARMSTRONG BERC 2 CLIP, ESR-1308 3/4" 1-1/2" TOTAL TRAVEL
