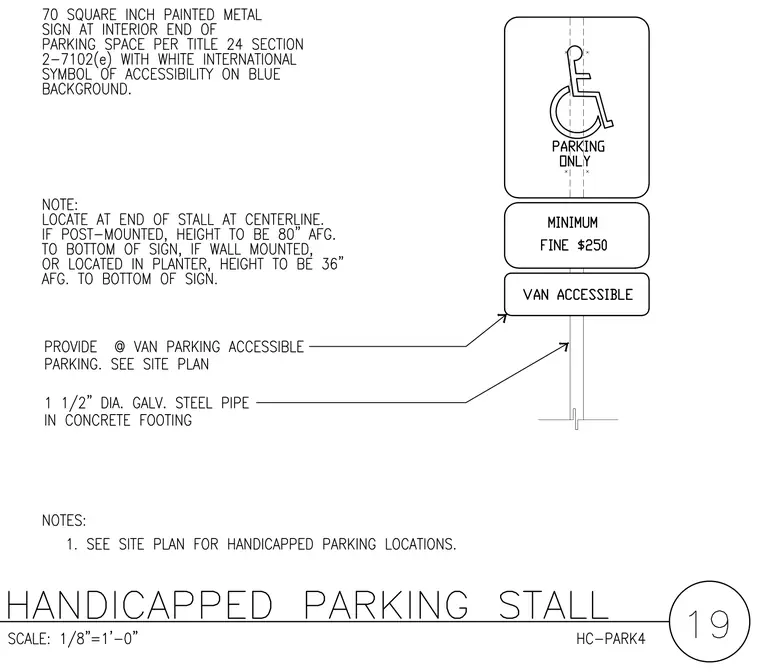

A seventy square inch painted metal sign featuring the international accessibility symbol and text is positioned at the interior end of a parking space. Additional sign panels indicate fine requirements and van accessibility. The sign is supported by a one and one-half inch diameter galvanized steel pipe embedded in a concrete footing. The assembly is located at the stall centerline, with a mounting height of eighty inches above finished grade to the bottom of the sign when post-mounted.
