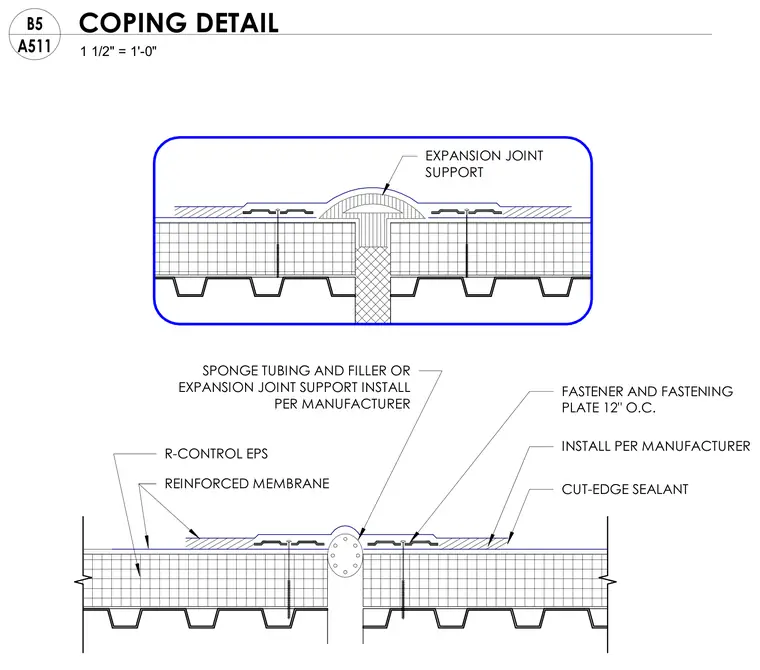

A roof expansion joint assembly crosses a steel deck. R-Control EPS insulation sits directly on the fluted metal deck and is topped with a reinforced membrane. An expansion joint support, comprised of sponge tubing and filler or a manufacturer-specified support system, bridges the structural gap. Fasteners and fastening plates secure the assembly at twelve inches on center. Cut-edge sealant is applied at the perimeter of the membrane.
EXPANSION JOINT SUPPORT SPONGE TUBING AND FILLER OR EXPANSION JOINT SUPPORT INSTALL PER MANUFACTURER FASTENER AND FASTENING PLATE 12" O.C. INSTALL PER MANUFACTURER CUT-EDGE SEALANT R-CONTROL EPS REINFORCED MEMBRANE 1 1/2" = 1'-0" A511 B5 COPING DETAIL
