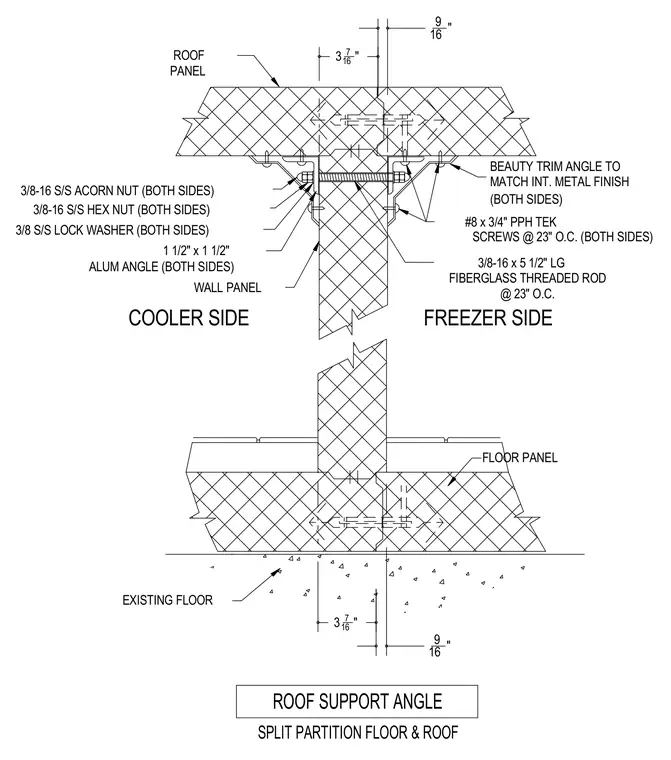

Insulated wall and roof panels are joined at a split partition separating a cooler side and a freezer side. The assembly is tied together near the top by one and a half inch by one and a half inch aluminum angles on both sides, secured with three eighths inch by five and a half inch long fiberglass threaded rods at twenty three inches on center. Each threaded rod is fastened with three eighths inch sixteen stainless steel hex nuts, lock washers, and acorn nuts on both sides. A beauty trim angle matching the interior metal finish is attached on both sides using number eight by three quarter inch pan head tek screws at twenty three inches on center. The wall and roof panels bear on floor panels resting above the existing floor.
ROOF SUPPORT ANGLE SPLIT PARTITION FLOOR & ROOF 9 16 " 9 16 " 3 7 16 " 3 7 16 " EXISTING FLOOR 3/8-16 S/S HEX NUT (BOTH SIDES) 3/8 S/S LOCK WASHER (BOTH SIDES) ALUM ANGLE (BOTH SIDES) 1 1/2" x 1 1/2" SCREWS @ 23" O.C. (BOTH SIDES) #8 x 3/4" PPH TEK FIBERGLASS THREADED ROD 3/8-16 x 5 1/2" LG @ 23" O.C. 3/8-16 S/S ACORN NUT (BOTH SIDES) ROOF PANEL WALL PANEL COOLER SIDE FREEZER SIDE FLOOR PANEL BEAUTY TRIM ANGLE TO MATCH INT. METAL FINISH (BOTH SIDES)
