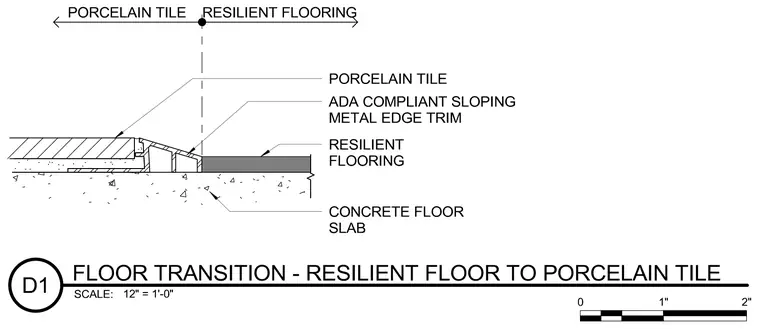

Porcelain tile meets resilient flooring over a concrete floor slab with an ADA compliant sloping metal edge trim providing the transition between the two different finish heights. The assembly incorporates a metal edge trim profile to protect the tile edge and create an accessible slope down to the resilient flooring.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
