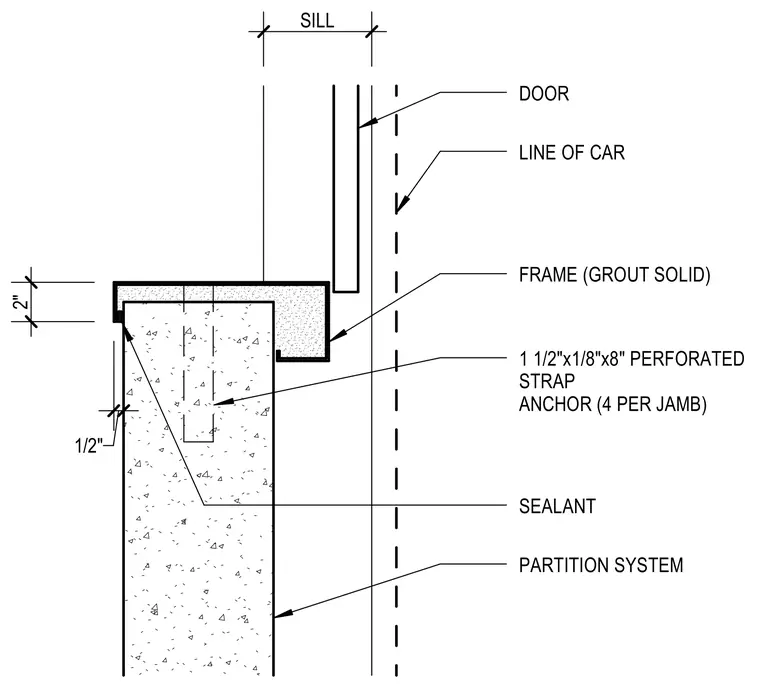

An elevator door sill sets above a solid grouted frame connected to a partition system. A 1 1/2" by 1/8" by 8" perforated strap anchor provides connection at four places per jamb. A joint sealed with sealant is located at the interface of the frame and partition.
DOOR LINE OF CAR FRAME (GROUT SOLID) SEALANT PARTITION SYSTEM 1 1/2"x1/8"x8" PERFORATED STRAP ANCHOR (4 PER JAMB) 2" 1/2" SILL
