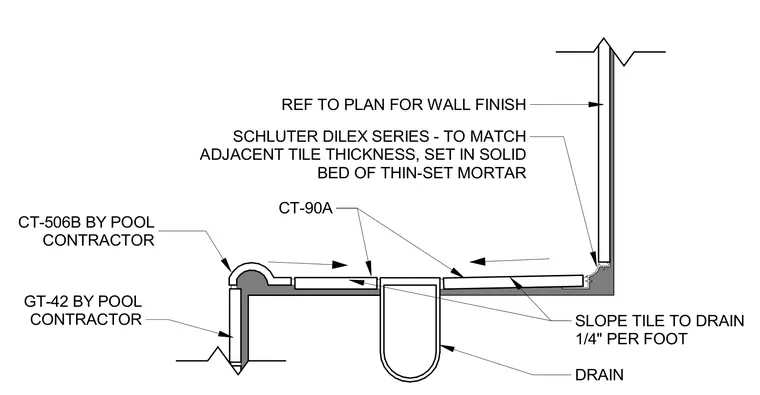

Porcelain tile wall finishes terminate above a trench drain assembly with a Schluter Dilex movement joint matched to adjacent tile thickness and set in a solid bed of thin-set mortar. Tile surfaces slope toward the central drain at one-quarter inch per foot. Drainage components including drain GT-42 and tile pieces CT-506B and CT-90A are coordinated as pool contractor scope.
REF TO PLAN FOR WALL FINISH SCHLUTER DILEX SERIES - TO MATCH ADJACENT TILE THICKNESS, SET IN SOLID BED OF THIN-SET MORTAR DRAIN GT-42 BY POOL CONTRACTOR SLOPE TILE TO DRAIN 1/4" PER FOOT CT-506B BY POOL CONTRACTOR CT-90A
