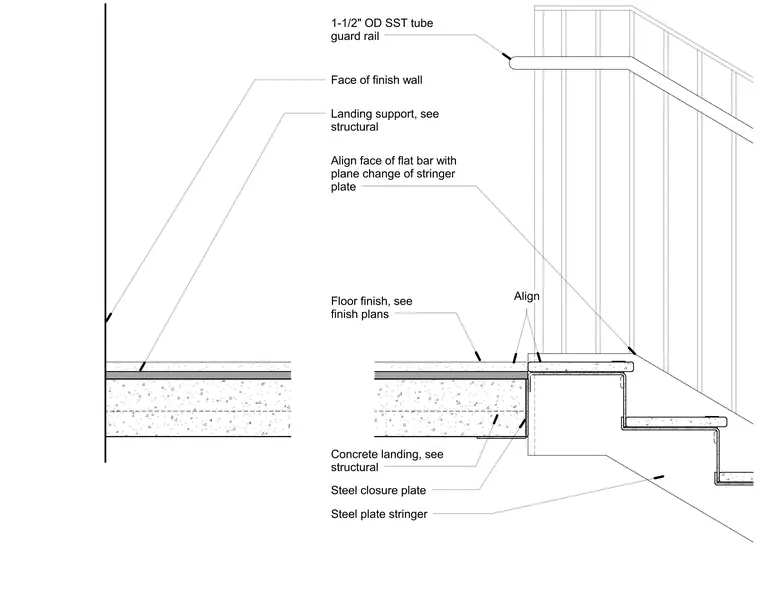

A steel plate stringer stair connects to a concrete landing. A steel closure plate bridges the stair and landing assembly, aligned with the plane change of the stringer plate. Floor finishes match the finish plans above the concrete landing and structural supports. A one and one-half inch outer diameter stainless steel tube guard rail is mounted alongside the stair run.
Concrete landing, see structural Steel closure plate Steel plate stringer 1-1/2" OD SST tube guard rail Align face of flat bar with plane change of stringer plate Align Floor finish, see finish plans Landing support, see structural Face of finish wall
