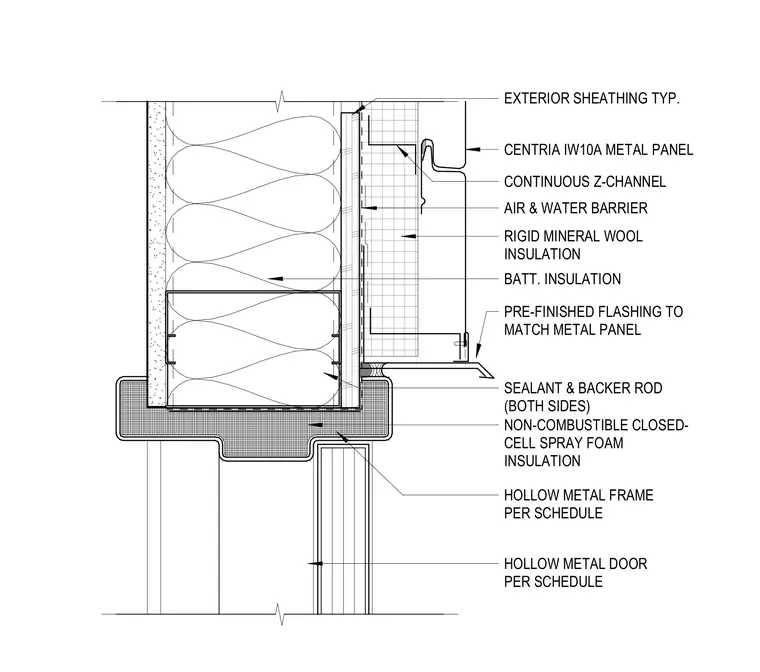

The hollow metal door frame is installed within the wall opening, with the head of the frame insulated by non-combustible closed-cell spray foam. The exterior wall assembly consists of Centria IW10A metal panels mounted on continuous Z-channels over rigid mineral wool insulation. An air and water barrier is applied over the exterior sheathing, which is backed by batt insulation within the wall cavity. Pre-finished flashing matches the metal panel finish at the head, with sealant and backer rod applied on both sides to maintain the weather seal.
Text on the drawing
RIGID MINERAL WOOL INSULATION PRE-FINISHED FLASHING TO MATCH METAL PANEL SEALANT & BACKER ROD (BOTH SIDES) NON-COMBUSTIBLE CLOSED- CELL SPRAY FOAM INSULATION HOLLOW METAL FRAME PER SCHEDULE CENTRIA IW10A METAL PANEL CONTINUOUS Z-CHANNEL BATT. INSULATION EXTERIOR SHEATHING TYP. AIR & WATER BARRIER HOLLOW METAL DOOR PER SCHEDULE
