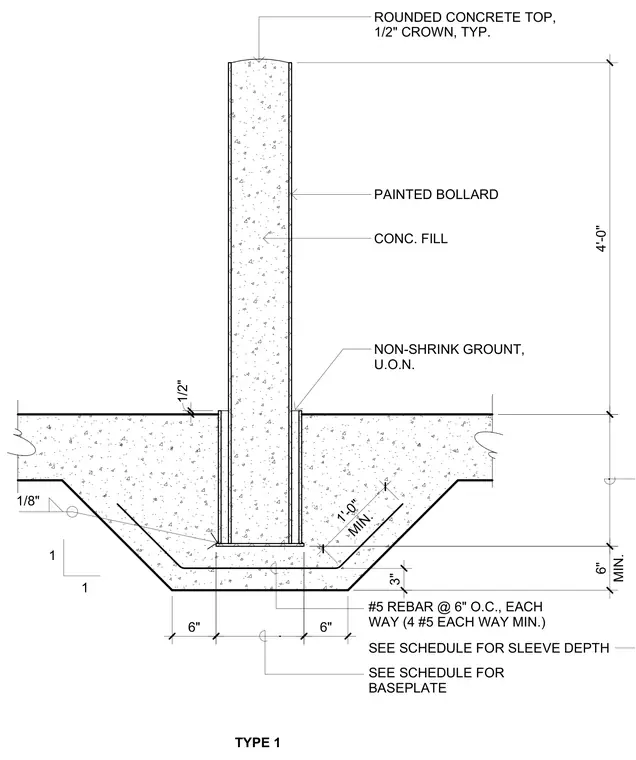

A painted steel pipe bollard extends four feet above grade with a rounded concrete top finished with a half-inch crown. The bollard is filled with concrete and set into a concrete sleeve surrounded by non-shrink grout unless otherwise noted. The footing features a reinforced concrete base with a minimum three-inch clearance below the baseplate and a six-inch minimum depth at the haunches. Reinforcement consists of number five rebars at six inches on center each way with a minimum of four number five bars each way. Baseplate and sleeve depths are sized per the project schedule.
PAINTED BOLLARD ROUNDED CONCRETE TOP, 1/2" CROWN, TYP. NON-SHRINK GROUNT, U.O.N. MIN. 1'-0" #5 REBAR @ 6" O.C., EACH WAY (4 #5 EACH WAY MIN.) SEE SCHEDULE FOR BASEPLATE 1 1 1/8" SEE SCHEDULE FOR SLEEVE DEPTH CONC. FILL . 6" 6" . 3" MIN. 6" TYPE 1 1/2" 4'-0"
