A one and one-quarter inch diameter standard steel pipe handrail and guardrail post is inserted into a two and one-half inch diameter standard steel pipe sleeve embedded in concrete. The sleeve is welded at the bottom with a one-quarter inch steel plate and secured with anchoring cement inside the finished concrete slab. A one and one-half inch diameter standard steel pipe top rail is attached above, maintaining a height of three feet six inches at guardrails and three feet to stair nosings at handrails. All connections are welded and ground smooth typically, with the assembly positioned a minimum of four inches from the edge of the slab where applicable.

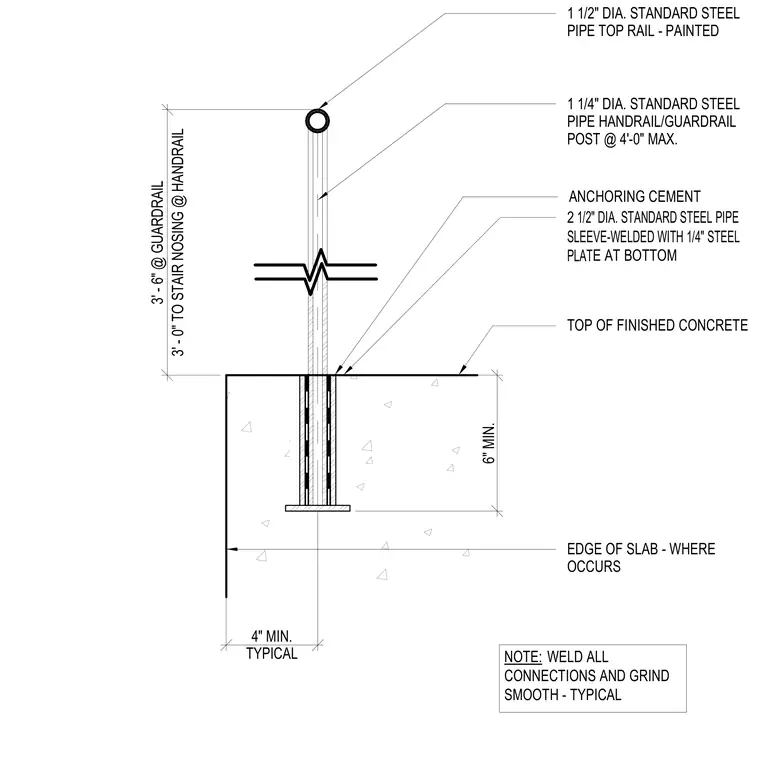

6" MIN. 4" MIN. TYPICAL 3' - 6" @ GUARDRAIL 3' - 0" TO STAIR NOSING @ HANDRAIL 1 1/2" DIA. STANDARD STEEL PIPE TOP RAIL - PAINTED 2 1/2" DIA. STANDARD STEEL PIPE SLEEVE-WELDED WITH 1/4" STEEL PLAT E AT BOTTOM TOP OF FINISHED CONCRETE ANCHORING CEMENT NOTE: WELD ALL CONNECTIONS AND GRIND SMOOTH - TYPICAL 1 1/4" DIA. STANDARD STEEL PIPE HANDRAIL/GUARDRAIL POST @ 4'-0" MAX. EDGE OF SLAB - WHERE OCCURS
