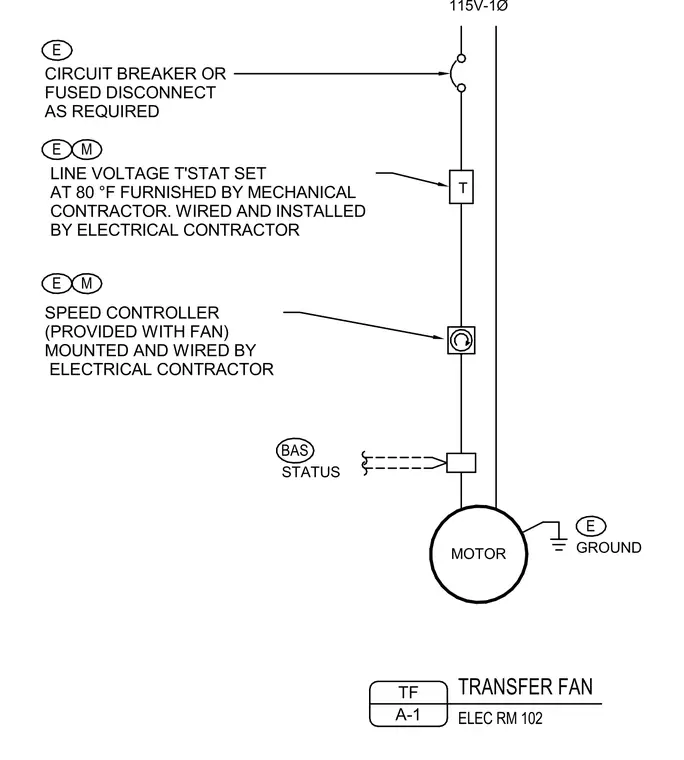

A 115-volt single-phase motor connects to a line voltage circuit breaker or fused disconnect as required. A line voltage thermostat set at 80 degrees Fahrenheit is furnished by the mechanical contractor and wired by the electrical contractor. A speed controller provided with the fan is mounted and wired by the electrical contractor. A building automation system status connection and a ground wire tie into the motor circuit.
M M BAS E E E E CIRCUIT BREAKER OR FUSED DISCONNECT AS REQUIRED LINE VOLTAGE T'STAT SET AT 80 °F FURNISHED BY MECHANICAL CONTRACTOR. WIRED AND INSTALLED BY ELECTRICAL CONTRACTOR SPEED CONTROLLER (PROVIDED WITH FAN) MOUNTED AND WIRED BY ELECTRICAL CONTRACTOR 115V-1Ø MOTOR T STATUS GROUND TF A-1 TRANSFER FAN ELEC RM 102
