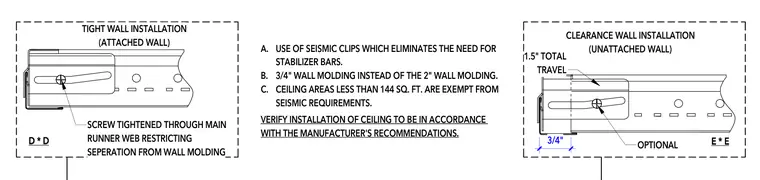

Suspended ceiling installation details show tight and clearance wall connections at wall moldings. The tight wall installation uses a screw tightened through the main runner web to restrict separation from the wall molding. The clearance wall installation allows for one point five inches of total travel with a three-quarter-inch wall molding. Seismic clips can be used to eliminate the need for stabilizer bars. Ceiling areas less than one hundred forty-four square feet are exempt from seismic requirements.
TIGHT WALL INSTALLATION (ATTACHED WALL) CLEARANCE WALL INSTALLATION (UNATTACHED WALL) SCREW TIGHTENED THROUGH MAIN RUNNER WEB RESTRICTING SEPERATION FROM WALL MOLDING D * D OPTIONAL 1.5" TOTAL TRAVEL E * E A. USE OF SEISMIC CLIPS WHICH ELIMINATES THE NEED FOR STABILIZER BARS. B. 3/4" WALL MOLDING INSTEAD OF THE 2" WALL MOLDING. C. CEILING AREAS LESS THAN 144 SQ. FT. ARE EXEMPT FROM SEISMIC REQUIREMENTS. VERIFY INSTALLATION OF CEILING TO BE IN ACCORDANCE WITH THE MANUFACTURER'S RECOMMENDATIONS. 3/4"
