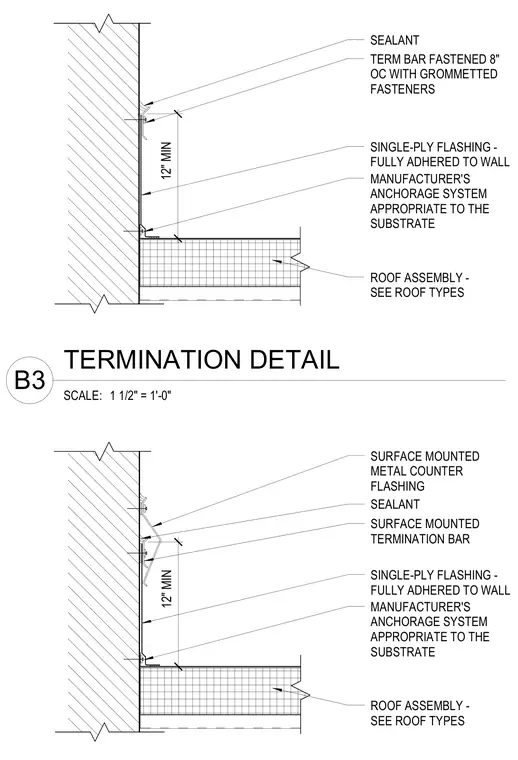

A single-ply roof membrane transitions vertically up the wall with a minimum twelve-inch flashing height and is fully adhered to the substrate. The top of the membrane is secured with a surface-mounted termination bar fastened at eight inches on center using grommetted fasteners, sealed at the top edge with sealant. An optional surface-mounted metal counter flashing is anchored above the termination bar for weather protection. The roof assembly is supported below per the structural and architectural roof type specifications using manufacturer-approved anchorage systems.
12" MIN ROOF ASSEMBLY - SEE ROOF TYPES MANUFACTURER'S ANCHORAGE SYSTEM APPROPRIATE TO THE SUBSTRATE SINGLE-PLY FLASHING - FULLY ADHERED TO WALL SEALANT SURFACE MOUNTED METAL COUNTER FLASHING SURFACE MOUNTED TERMINATION BAR 12" MIN ROOF ASSEMBLY - SEE ROOF TYPES MANUFACTURER'S ANCHORAGE SYSTEM APPROPRIATE TO THE SUBSTRATE SINGLE-PLY FLASHING - FULLY ADHERED TO WALL TERM BAR FASTENED 8" OC WITH GROMMETTED FASTENERS SEALANT SCALE: 1 1/2" = 1'-0" B3 TERMINATION DETAIL
