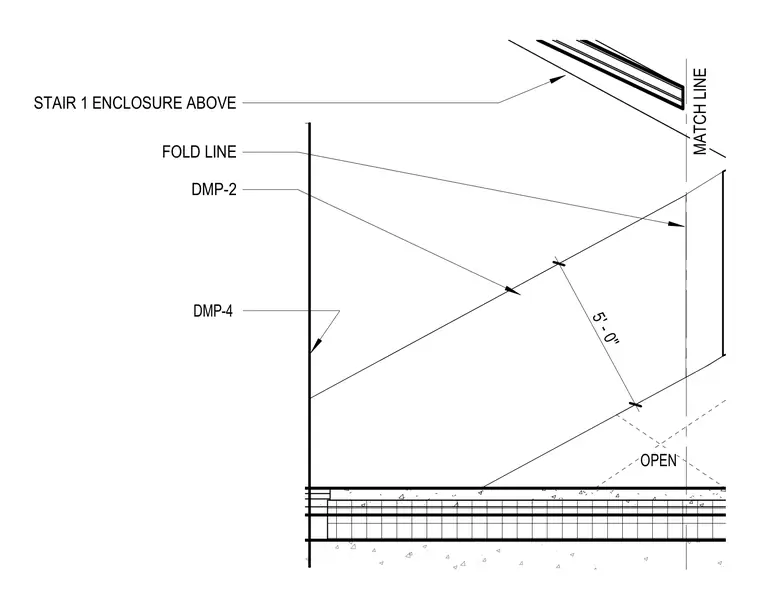

This drawing outlines the spatial configuration for the Stair 1 enclosure above, featuring designated fold lines and match lines DMP-2 and DMP-4. A five-foot dimension separates key reference points within the open floor area.
