A-489XM — Detail Notes:

Architectural · A-489XM

Detail Notes:

Units: imperial
Sheet: RA-T2.1.6
Discipline: Architectural

Materials

EIFS / Plaster / Stucco Steel

Elements

Connections / Plates

Text on the drawing

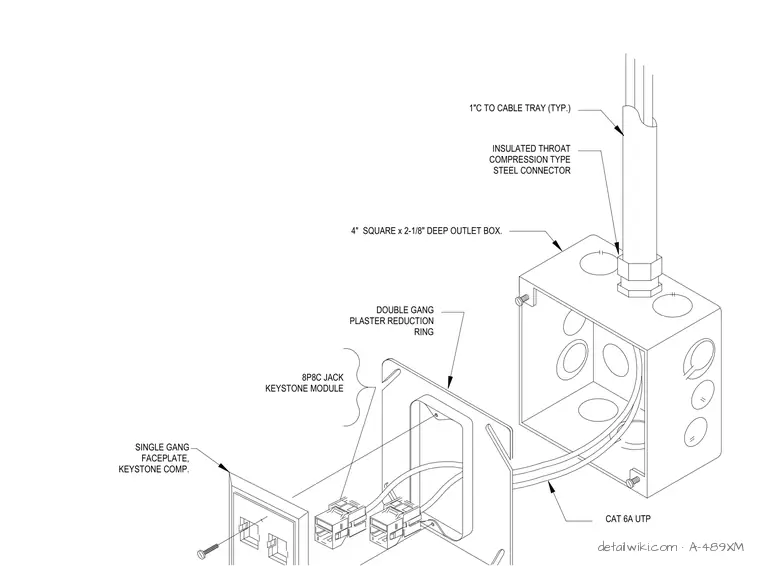

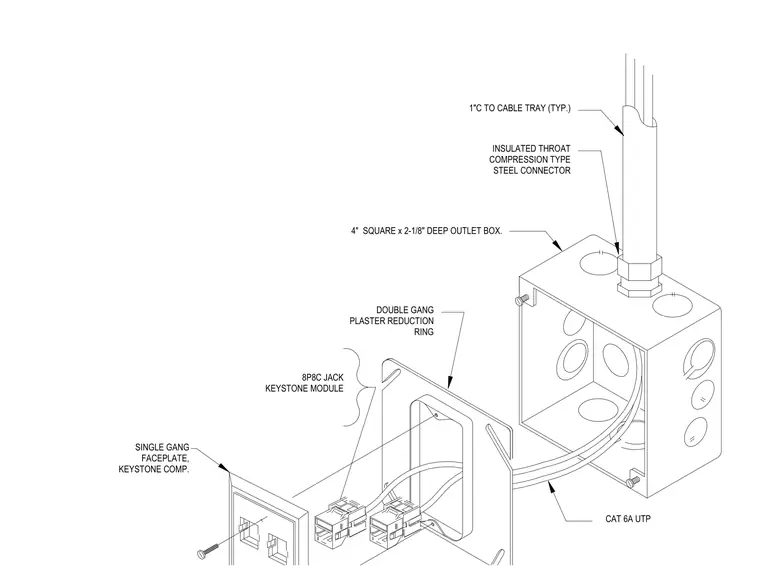

CAT 6A UTP SINGLE GANG FACEPLATE, KEYSTONE COMP. DOUBLE GANG PLASTER REDUCTION RING INSULATED THROAT COMPRESSION TYPE STEEL CONNECTOR 1"C TO CABLE TRAY (TYP.) 4" SQUARE x 2-1/8" DEEP OUTLET BOX. 8P8C JACK KEYSTONE MODULE
