Architectural · A-489SP

Accessible Parking Stall Signage

Elements

About this detail

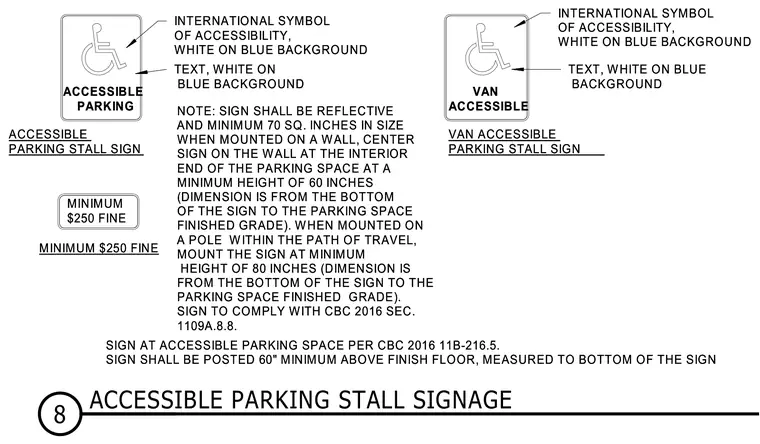

Accessible parking stall signage features the international symbol of accessibility and required text in white on a blue background, complying with California Building Code 2016 Section 11B-216.5. Signs must be reflective and have a minimum area of 70 square inches. When mounted on a wall at the interior end of the parking space, the bottom of the sign shall be positioned at a minimum height of 60 inches above the finished grade. When mounted on a pole within the path of travel, the sign shall be posted at a minimum height of 80 inches above the finished grade.
