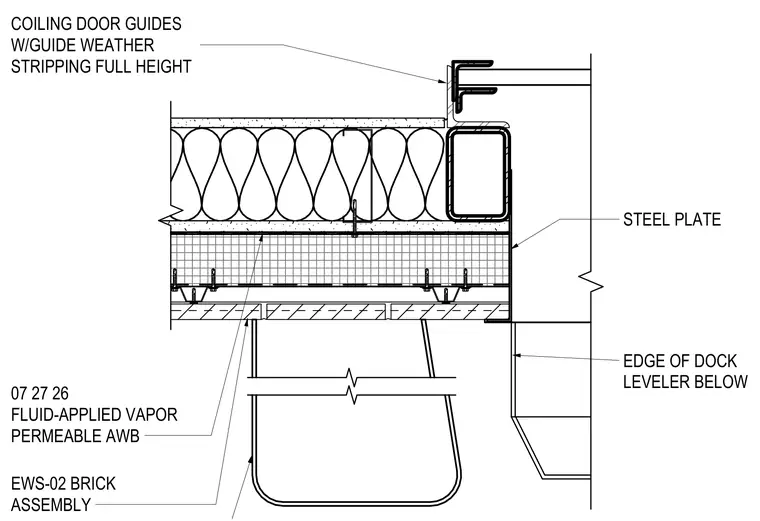

Coiling door guides with full-height weather stripping attach adjacent to a steel plate and a hollow structural section frame. A fluid-applied vapor permeable air-water barrier is applied behind the EWS-02 brick assembly. The edge of a dock leveler is located directly below.
COILING DOOR GUIDES W/GUIDE WEATHER STRIPPING FULL HEIGHT EDGE OF DOCK LEVELER BELOW EWS-02 BRICK ASSEMBLY STEEL PLATE 07 27 26 FLUID-APPLIED VAPOR PERMEABLE AWB
