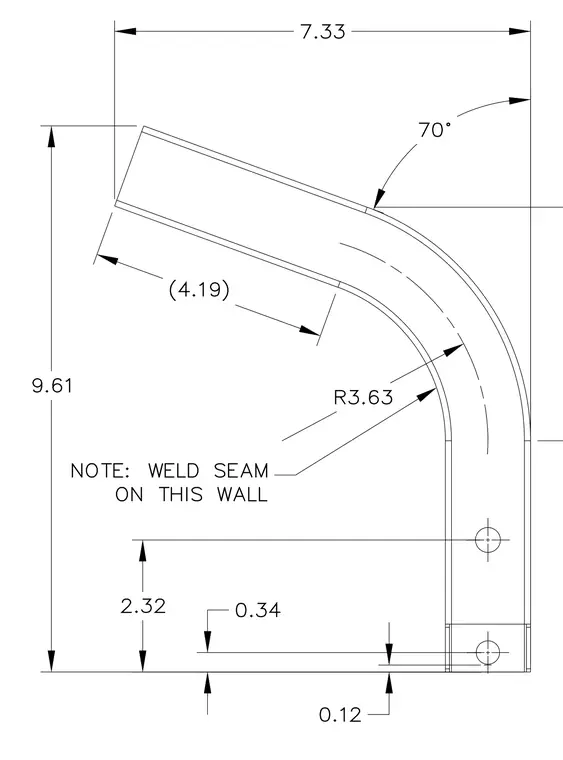

A welded wall seam connection features a seventy-degree angle and a radius of three point six three inches. The assembly incorporates precise dimensional callouts including a nine point six one inch overall height, a seven point three three inch width, and specific positioning dimensions of zero point one two, zero point three four, and two point three two inches. A note specifies the weld seam location along the wall profile.
