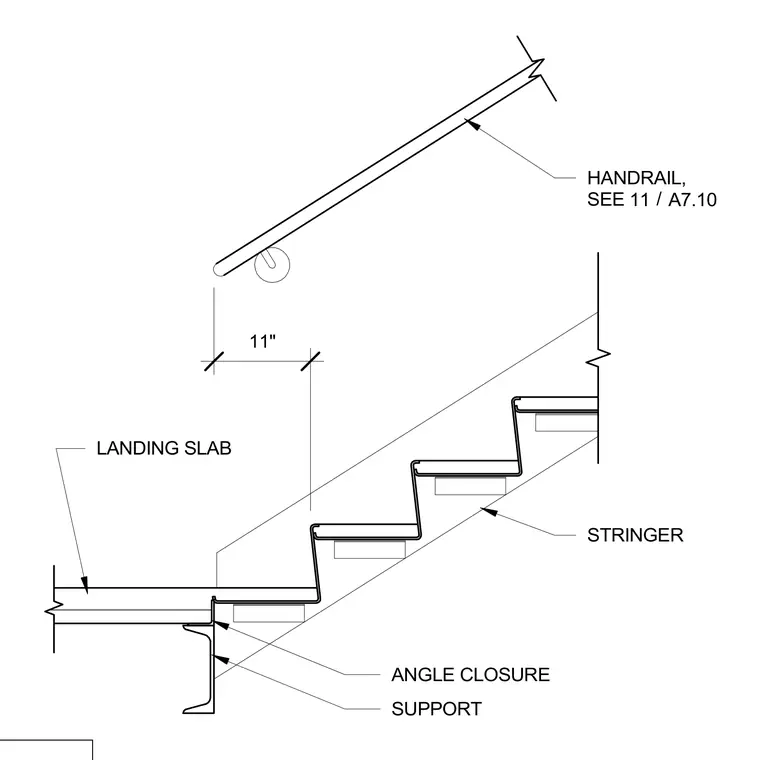

A formed steel stair stringer ties into the landing slab assembly, maintained at an eleven-inch dimension from the handrail above. An angle closure secures the transition between the stringer and the concrete landing slab. A support member anchors beneath the landing edge to carry the stair loads. The handrail mounts independently above the run as detailed on sheet A7.10.
