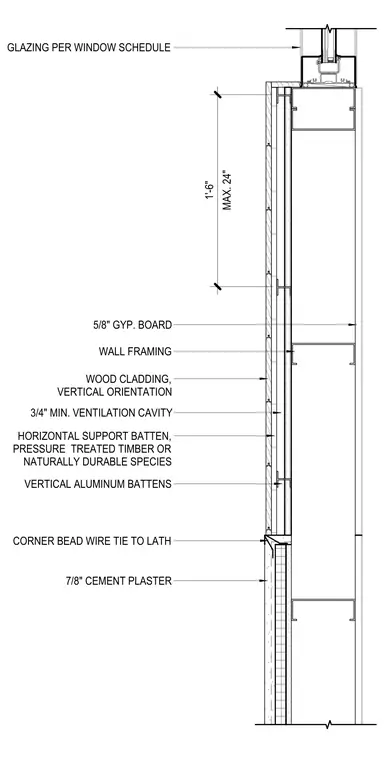

This wall assembly detail features a 7/8-inch cement plaster finish transitioning to vertically oriented wood cladding over a three-quarter-inch minimum ventilation cavity. The wood cladding is supported by horizontal support battens of pressure-treated timber or naturally durable species, backed by vertical aluminum battens. A corner bead with wire tie to lath secures the plaster edge. The interior framing consists of wall framing lined with 5/8-inch gypsum board, and the head condition interfaces with glazing specified per the window schedule.
GLAZING PER WINDOW SCHEDULE MAX. 24" 1'-6" 5/8" GYP. BOARD WALL FRAMING WOOD CLADDING, VERTICAL ORIENTATION 3/4" MIN. VENTILATION CAVITY VERTICAL ALUMINUM BATTENS CORNER BEAD WIRE TIE TO LATH 7/8" CEMENT PLASTER HORIZONTAL SUPPORT BATTEN, PRESSURE TREATED TIMBER OR NATURALLY DURABLE SPECIES
