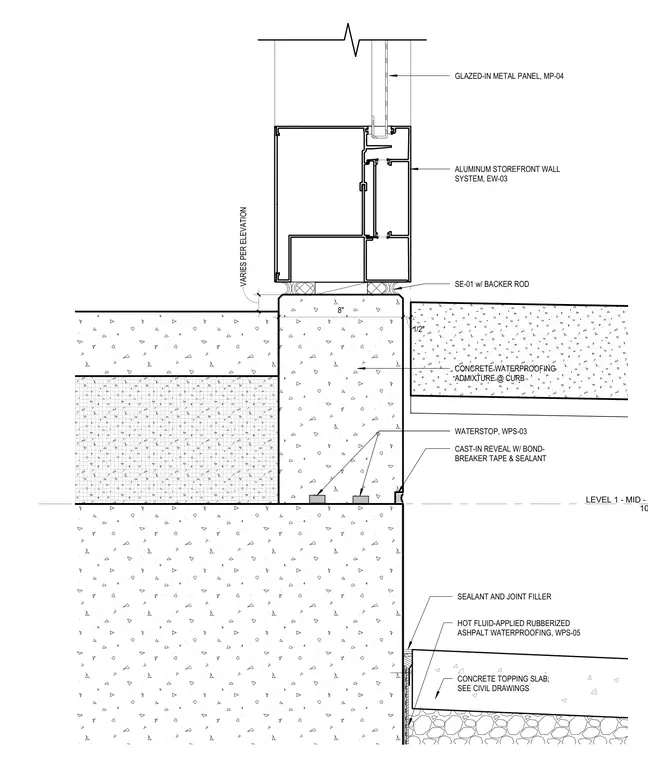

An aluminum storefront wall system with a glazed-in metal panel bears on an eight-inch concrete curb over shims and a backer rod with sealant. The concrete curb incorporates a waterstop and a cast-in reveal with bond-breaker tape and sealant. Below the curb, the assembly ties into a concrete topping slab over hot fluid-applied rubberized asphalt waterproofing and a joint filler. A concrete waterproofing admixture is integrated into the curb, and a level marker establishes the top of slab elevation.
LEVEL 1 - MID - TOS 10 1/4" SEALANT AND JOINT FILLER HOT FLUID-APPLIED RUBBERIZED ASHPALT WATERPROOFING, WPS-05 CONCRETE TOPPING SLAB; SEE CIVIL DRAWINGS 8" 1/2" VARIES PER ELEVATION ALUMINUM STOREFRONT WALL SYSTEM, EW-03 GLAZED-IN METAL PANEL, MP-04 SE-01 w/ BACKER ROD WATERSTOP, WPS-03 CONCRETE WATERPROOFING ADMIXTURE @ CURB CAST-IN REVEAL W/ BOND- BREAKER TAPE & SEALANT
