Architectural · A-47G8H

Parapet and Roof Edge Detail with Louver and Wood Slat Ceiling

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall Membrane / Roofing

Elements

Walls Curtain Walls Roofs Parapets Ceilings Decks Waterproofing / Flashing Insulation Connections / Plates

About this detail

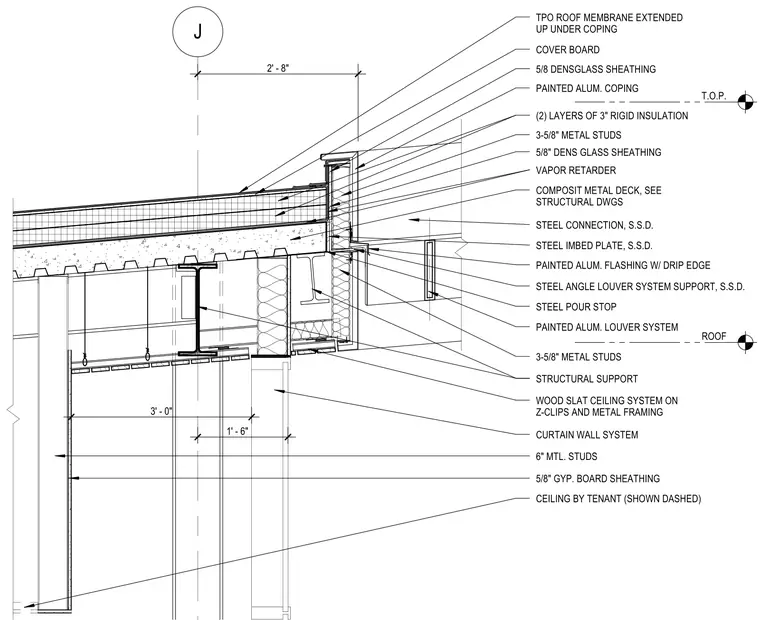

This roof edge and parapet detail features a TPO roof membrane extending up under a painted aluminum coping over two layers of three-inch rigid insulation, a cover board, and five-eighths-inch DensGlass sheathing. The roof deck consists of a composite metal deck over structural steel supports and a steel pour stop. The parapet wall incorporates three-and-five-eighths-inch metal studs, exterior DensGlass sheathing, and a vapor retarder. Below the roof slab, a painted aluminum flashing with a drip edge transitions to a painted aluminum louver system supported by steel angles. The interior ceiling features a wood slat system on Z-clips and metal framing, alongside a tenant ceiling shown dashed and backed by six-inch metal studs with five-eighths-inch gypsum board sheathing.
