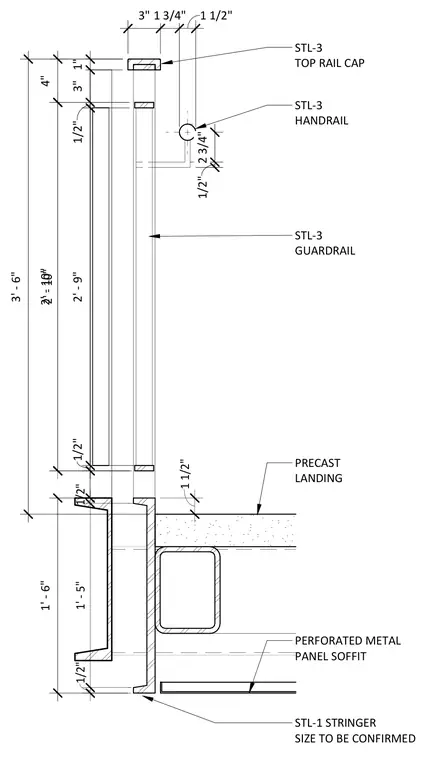

A steel guardrail and handrail assembly is attached to a precast concrete stair landing supported by a structural steel stringer. The STL-3 guardrail features a top rail cap and a handrail positioned at regulated heights, anchored above the landing slab. Below the landing, an STL-1 stringer of a size to be confirmed is detailed alongside a perforated metal panel soffit.
4" 2' - 10" 1' - 6" 1" 3" 1/2" 2' - 9" 1/2" 2 3/4" 1/2" 3" 1 3/4" 1 1/2" PRECAST LANDING STL-3 HANDRAIL STL-3 TOP RAIL CAP STL-3 GUARDRAIL PERFORATED METAL PANEL SOFFIT STL-1 STRINGER SIZE TO BE CONFIRMED 3' - 6" 1/2" 1' - 5" 1/2" 2' - 10" 1 1/2"
