A maximum 4-inch diameter metallic pipe or conduit penetrates a partition wall sized per plans. The annular space between the pipe and the opening measures a minimum of 1/4 inch up to a maximum of 1 1/4 inches. The opening is tightly packed with a minimum 2 1/2-inch thick layer of mineral wool insulation forming material. A minimum 1-inch thick layer of sealant is applied within the opening, flush with the surface of the wall on both sides. The assembly complies with UL listing W-L-1064.

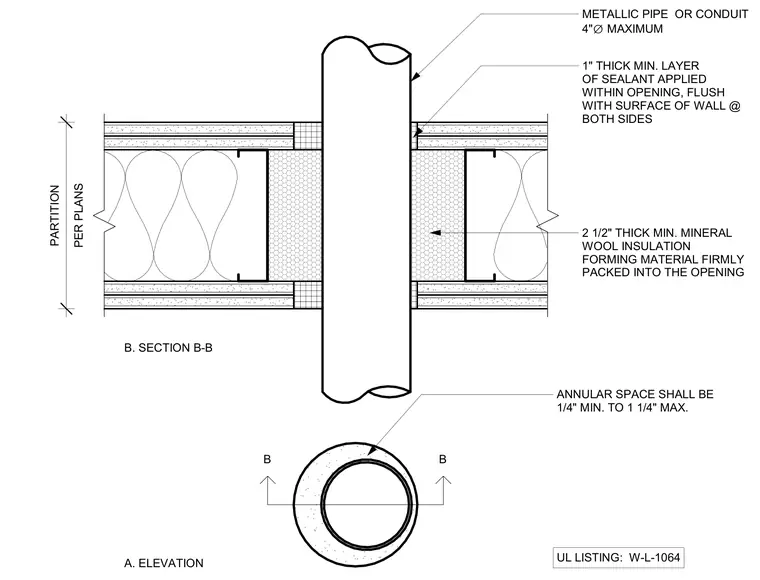

A. ELEVATION B. SECTION B-B B B METALLIC PIPE OR CONDUIT 4" ∅ MAXIMUM 1" THICK MIN. LAYER OF SEALANT APPLIED WITHIN OPENING, FLUSH WITH SURFACE OF WALL @ BOTH SIDES 2 1/2" THICK MIN. MINERAL WOOL INSULATION FORMING MATERIAL FIRMLY PACKED INTO THE OPENING ANNULAR SPACE SHALL BE 1/4" MIN. TO 1 1/4" MAX. UL LISTING: W-L-1064 PER PLANS PARTITION
