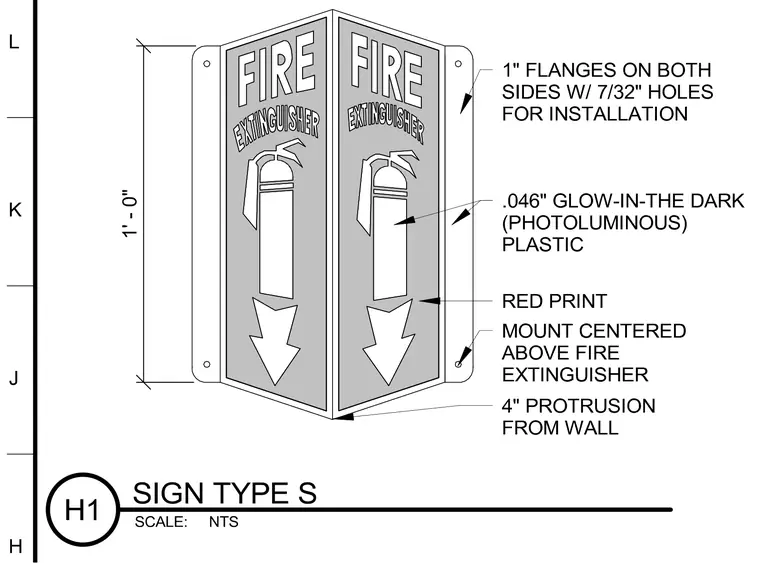

Projecting sign type S for fire extinguisher location, fabricated from 0.046-inch glow-in-the-dark photoluminous plastic with red print. A 90-degree corner bend creates a 4-inch protrusion from the wall, with 1-inch mounting flanges on both sides containing 7/32-inch holes for installation. The sign measures 1 foot in height and is specified to be mounted centered above the fire extinguisher.
