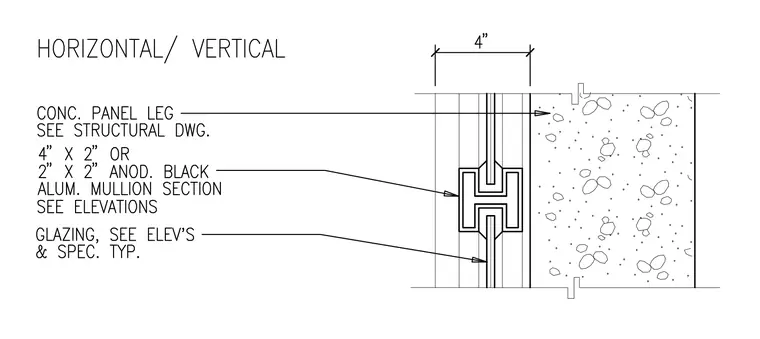

An anodized black aluminum mullion section measuring four inches by two inches or two inches by two inches connects to a concrete panel leg detailed per structural drawings. Glazing extends into the mullion sections per elevations and typical specifications. A four-inch dimension indicates the joint spacing or setback adjacent to the concrete panel.
