Structural · A-463DE

Embed Plate Details with Rods and Headed Studs

Materials

Steel

Elements

Anchors / Embeds Connections / Plates

Connections

Shear Stud / Composite Embed Plate

About this detail

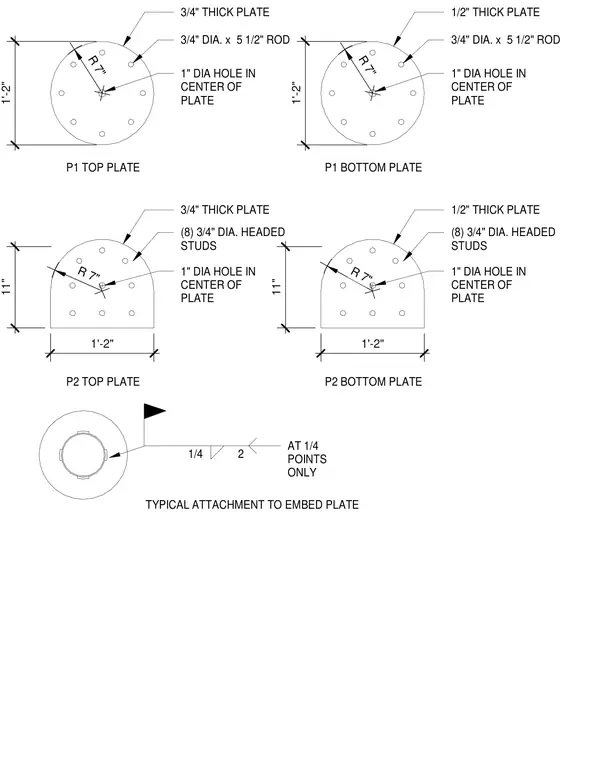

The assembly consists of steel embed plates designated as P1 top plate, P1 bottom plate, P2 top plate, and P2 bottom plate. The P1 plates are circular with a seven-inch radius and one-foot two-inch overall dimension, featuring a one-inch diameter hole in the center. The P1 top plate is three-quarters of an inch thick and includes three-quarter-inch diameter by five-and-a-half-inch rods, while the P1 bottom plate is half an inch thick. The P2 plates are semi-circular with a seven-inch radius, an eleven-inch height, and a one-foot two-inch width, featuring a one-inch diameter hole in the center and eight three-quarter-inch diameter headed studs. The P2 top plate is three-quarters of an inch thick, and the P2 bottom plate is half an inch thick. A typical attachment to the embed plate utilizes a quarter-inch fillet weld applied at quarter points only.
