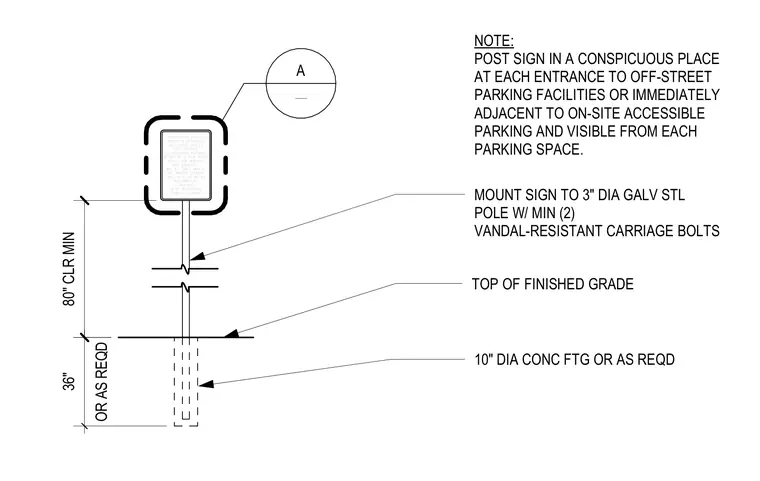

An accessible parking sign is mounted to a three-inch diameter galvanized steel pole with a minimum of two vandal-resistant carriage bolts. The pole extends down into a ten-inch diameter concrete footing or as required, with thirty-six inches or as required depth below the top of finished grade. An eighty-inch minimum clearance is maintained from the finished grade to the bottom of the sign. The sign includes required towing warning text and is positioned in a conspicuous place at each entrance to off-street parking facilities or immediately adjacent to on-site accessible parking.
UNAUTHORIZED VEHICLES PARKED IN DESIGNATED ACCESSIBLE SPACES NOT DISPLAYING DISTINGUISHING PLACARDS OR SPECIAL LICENSE PLATES ISSUED FOR PERSONS WITH DISABILITIES WILL BE TOWED AWAY AT THE OWNER'S EXPENSE. TOWED VEHICLES MAY BE RECLAIMED AT: (Address) OR BY TELEPHONING (Telephone Number) A - MOUNT SIGN TO 3" DIA GALV STL POLE W/ MIN (2) VANDAL-RESISTANT CARRIAGE BOLTS 10" DIA CONC FTG OR AS REQD TOP OF FINISHED GRADE OR AS REQD 36" 80" CLR MIN NOTE: POST SIGN IN A CONSPICUOUS PLACE AT EACH ENTRANCE TO OFF-STREET PARKING FACILITIES OR IMMEDIATELY ADJACENT TO ON-SITE ACCESSIBLE PARKING AND VISIBLE FROM EACH PARKING SPACE.
