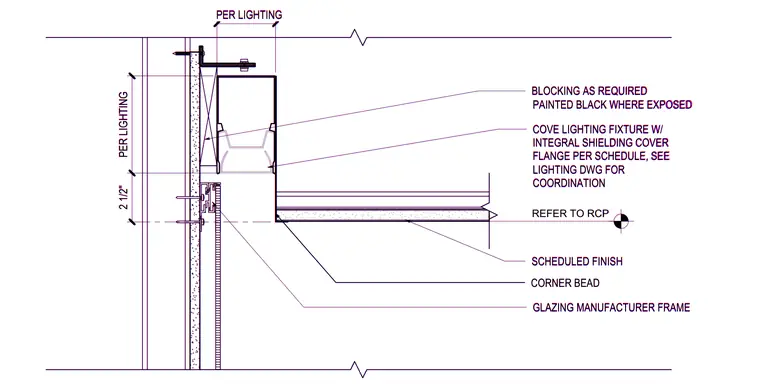

An accent wall light cove assembly integrates a cove lighting fixture with an integral shielding cover and flange per schedule, coordinated with lighting drawings. The fixture mounts adjacent to wood blocking as required, painted black where exposed. A glazing manufacturer frame connects below with a corner bead and scheduled finish, adjacent to a reflected ceiling plan reference.
COVE LIGHTING FIXTURE W/ INTEGRAL SHIELDING COVER FLANGE PER SCHEDULE, SEE LIGHTING DWG FOR COORDINATION PER LIGHTING 2 1/2" PER LIGHTING REFER TO RCP BLOCKING AS REQUIRED SCHEDULED FINISH CORNER BEAD GLAZING MANUFACTURER FRAME PAINTED BLACK WHERE EXPOSED COVE LIGHTING FIXTURE W/ INTEGRAL SHIELDING COVER FLANGE PER SCHEDULE, SEE LIGHTING DWG FOR COORDINATION PER LIGHTING 2 1/2" PER LIGHTING REFER TO RCP BLOCKING AS REQUIRED SCHEDULED FINISH CORNER BEAD GLAZING MANUFACTURER FRAME PAINTED BLACK WHERE EXPOSED
