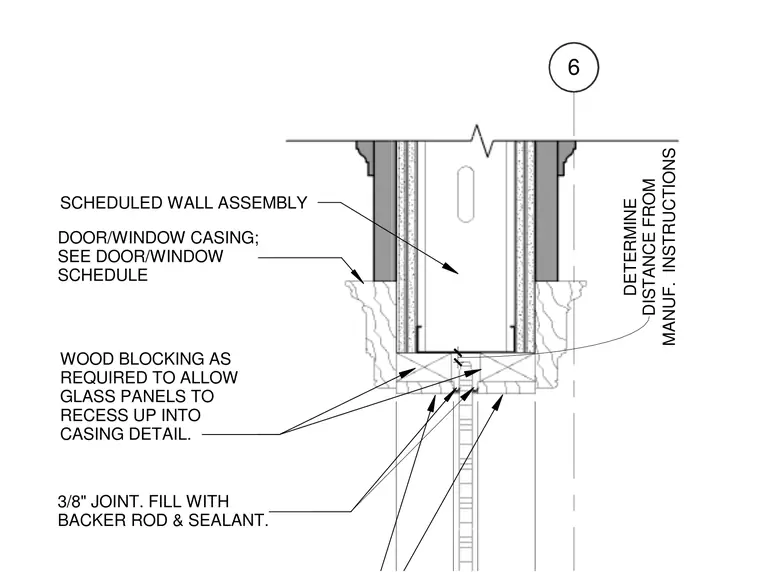

The glass wall assembly terminates at a scheduled wall assembly with wood blocking provided as required to allow glass panels to recess up into the casing detail. A three-eighths-inch joint is filled with backer rod and sealant between components. The distance from the scheduled wall assembly is determined by manufacturer instructions, and the door and window casing is detailed per the door and window schedule.
6 DOOR/WINDOW CASING; SEE DOOR/WINDOW SCHEDULE 3/8" JOINT. FILL WITH BACKER ROD & SEALANT. WOOD BLOCKING AS REQUIRED TO ALLOW GLASS PANELS TO RECESS UP INTO CASING DETAIL. SCHEDULED WALL ASSEMBLY MANUF. INSTRUCTIONS DETERMINE DISTANCE FROM
