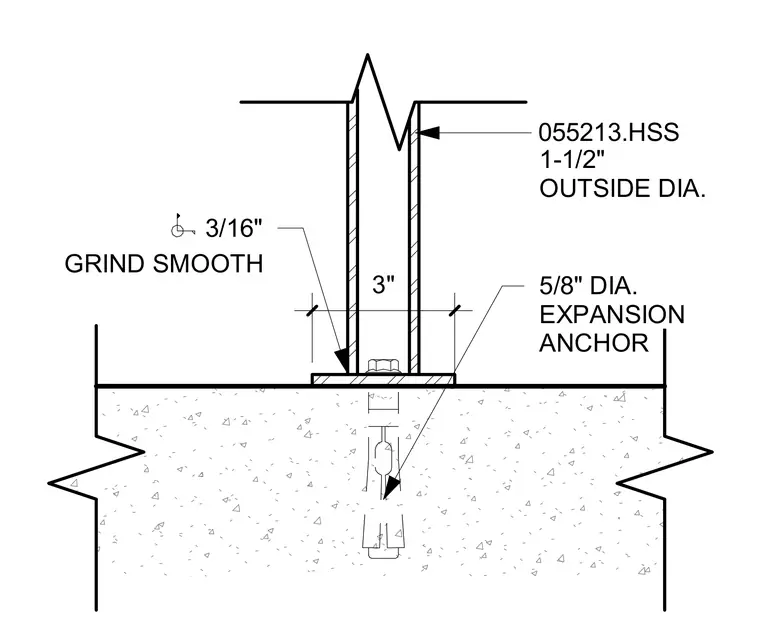

A 1-1/2 inch outside diameter hollow structural section handrail connects to a base plate secured to a concrete floor slab with a 5/8 inch diameter expansion anchor. The handrail attaches to the base plate using a 3/16 inch fillet weld ground smooth.
055213.HSS 1-1/2" OUTSIDE DIA. 5/8" DIA. EXPANSION ANCHOR 3" 3/16" GRIND SMOOTH
