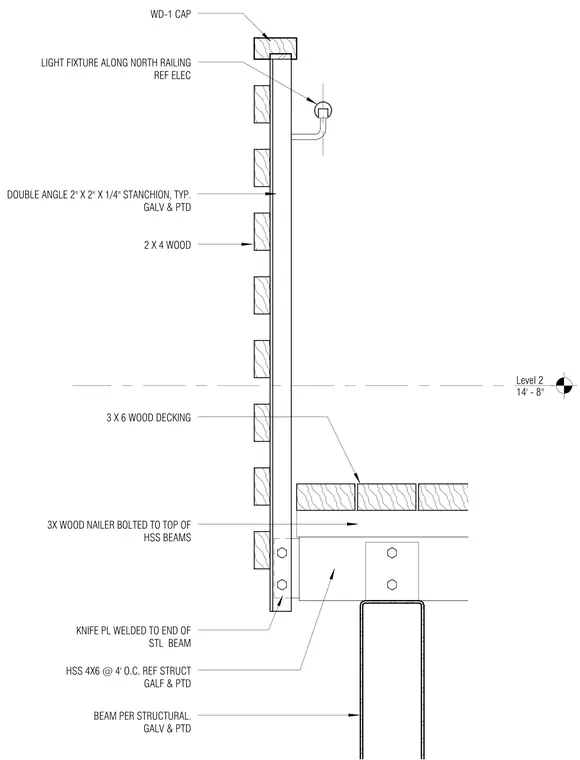

A galvanized and painted WD-1 cap beam tops the guardrail assembly, which features 2x4 wood members and a light fixture mounted along the north railing. The guardrail stanchions are constructed from double 2x2x1/4-inch angles that are galvanized and painted, fastened to a 3x6 wood decking. The decking sits on a 3x wood nailer bolted to the top of the hollow structural section 4x6 steel beams spaced at 4 feet on center. A knife plate welded to the end of the steel beam connects to the structural framing, supported by a beam per structural requirements that is also galvanized and painted.
Level 2 14' - 8" DOUBLE ANGLE 2" X 2" X 1/4" STANCHION, TYP. GALV & PTD WD-1 CAP BEAM PER STRUCTURAL. GALV & PTD LIGHT FIXTURE ALONG NORTH RAILING REF ELEC 2 X 4 WOOD 3 X 6 WOOD DECKING KNIFE PL WELDED TO END OF STL BEAM HSS 4X6 @ 4' O.C. REF STRUCT GALF & PTD 3X WOOD NAILER BOLTED TO TOP OF HSS BEAMS
