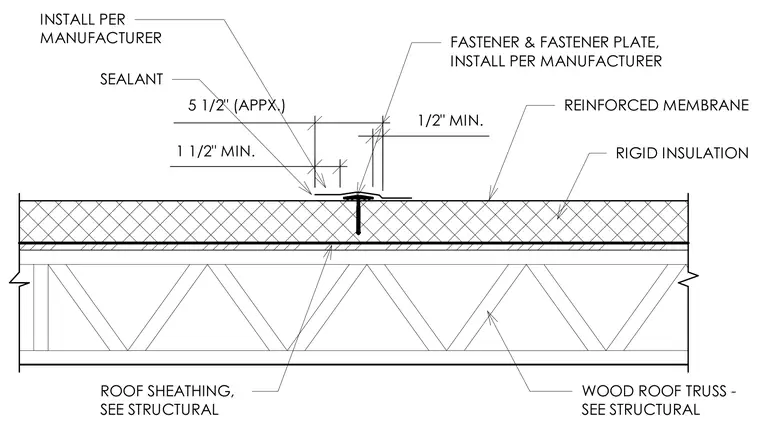

This cross section details a roof membrane lap joint installed over rigid insulation and roof sheathing supported by wood roof trusses. A reinforced membrane covers the rigid insulation, secured with fasteners and fastener plates installed per the manufacturer. Sealant is applied at the membrane lap with a one-and-a-half-inch minimum overlap and a half-inch minimum clearance. The assembly rests on roof sheathing and wood roof trusses sized per structural specifications.
1 1/2" MIN. 1/2" MIN. 5 1/2" (APPX.) WOOD ROOF TRUSS - SEE STRUCTURAL INSTALL PER MANUFACTURER SEALANT FASTENER & FASTENER PLATE, INSTALL PER MANUFACTURER REINFORCED MEMBRANE RIGID INSULATION ROOF SHEATHING, SEE STRUCTURAL
