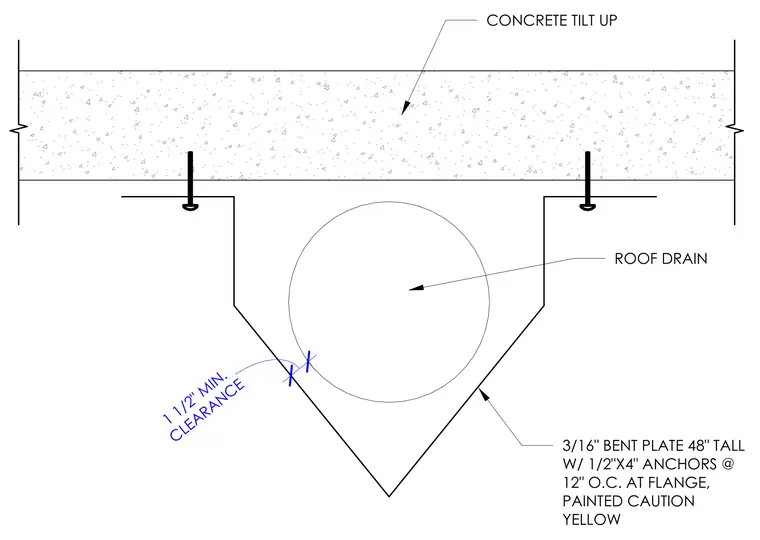

A forty-eight-inch tall three-sixteenth-inch bent steel plate protects a roof drain at a concrete tilt-up wall. The bent plate is secured with one-half-inch by four-inch anchors spaced at twelve inches on center along the mounting flange and finished with a caution yellow paint coating. A minimum clearance of one and one-half inches is maintained around the pipe installation.
CLEARANCE 1 1/2" MIN. ROOF DRAIN 3/16" BENT PLATE 48" TALL W/ 1/2"X4" ANCHORS @ 12" O.C. AT FLANGE, PAINTED CAUTION YELLOW CONCRETE TILT UP
