Architectural · A-44ZCH

Accessible Restroom Lavatory Counter and Mounting Details

Materials

Elements

About this detail

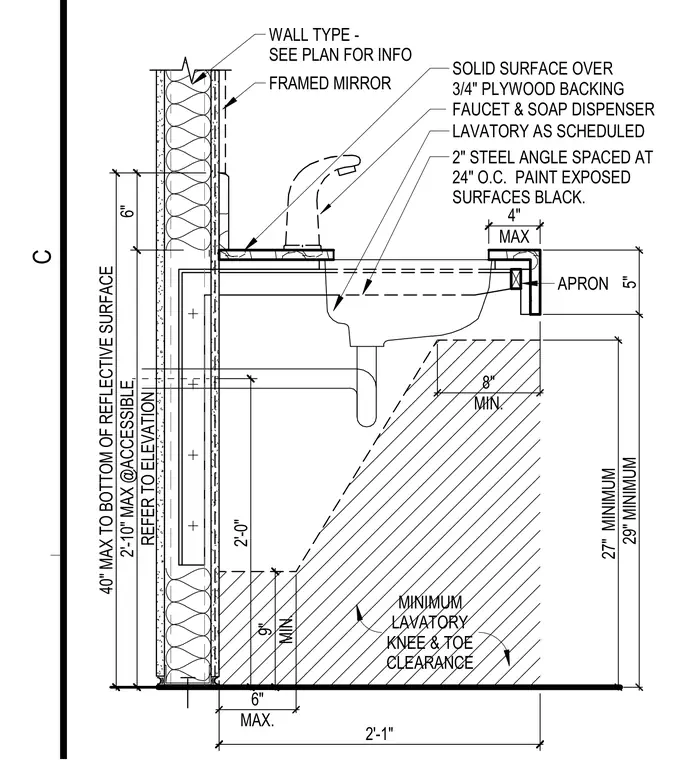

An accessible restroom lavatory assembly is mounted to a framed wall featuring a solid surface countertop over three-quarter-inch plywood backing. The lavatory includes a scheduled sink, faucet, and soap dispenser, supported by two-inch steel angles spaced at twenty-four inches on center with exposed surfaces painted black. The wall construction follows the plan info, supporting a framed mirror above. Critical ADA dimensions are maintained, including a maximum forty-inch height to the bottom of the reflective surface, a maximum two-foot-ten-inch height for accessibility, and required knee and toe clearances.
