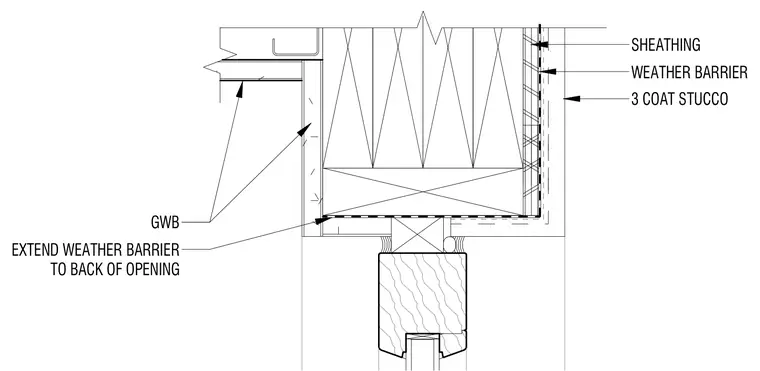

The weather barrier is applied over exterior sheathing and extended continuously to the back of the opening. A three-coat stucco finish is applied over the weather barrier. Gypsum wallboard is installed on the interior framing.
SHEATHING WEATHER BARRIER 3 COAT STUCCO GWB EXTEND WEATHER BARRIER TO BACK OF OPENING
