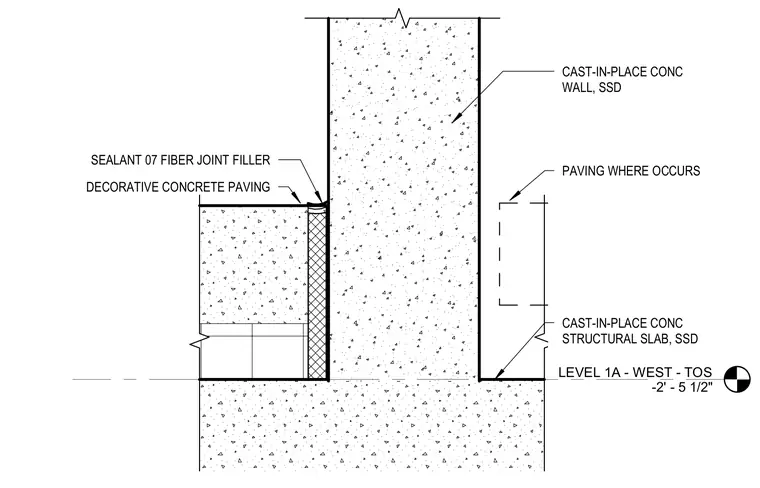

A cast-in-place concrete wall meets a cast-in-place concrete structural slab at Level 1A. Decorative concrete paving abuts the wall separated by a fiber joint filler and a bead of sealant. Paving occurs selectively against the wall face.
LEVEL 1A - WEST - TOS -2' - 5 1/2" CAST-IN-PLACE CONC WALL, SSD PAVING WHERE OCCURS CAST-IN-PLACE CONC STRUCTURAL SLAB, SSD SEALANT 07 FIBER JOINT FILLER DECORATIVE CONCRETE PAVING
