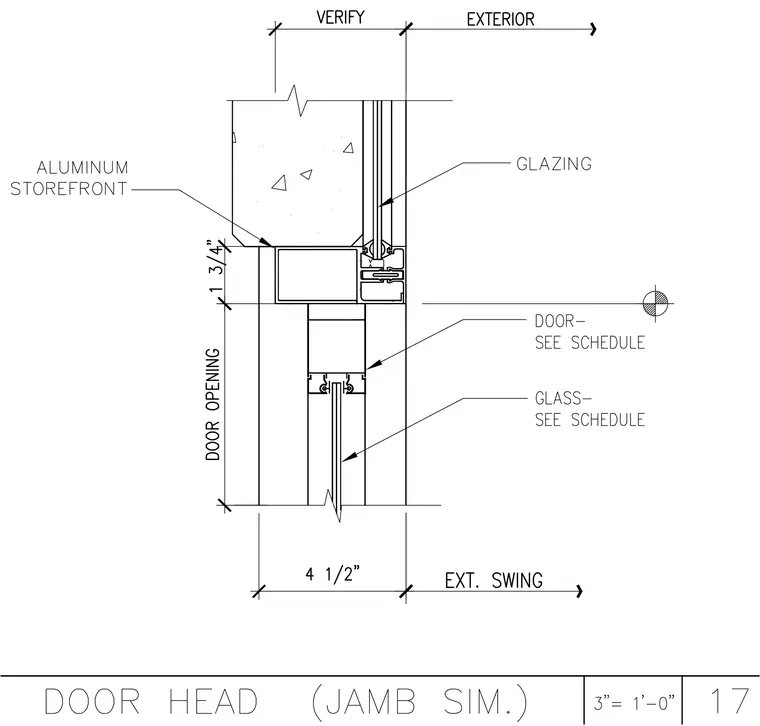

An aluminum storefront head frame supports an exterior swing door opening, with glass and door types specified per schedule. The assembly accommodates a one and three-quarter inch dimension at the head frame and a four and one-half inch frame depth. Glazing is integrated directly into the upper storefront profile above the door leaf.
