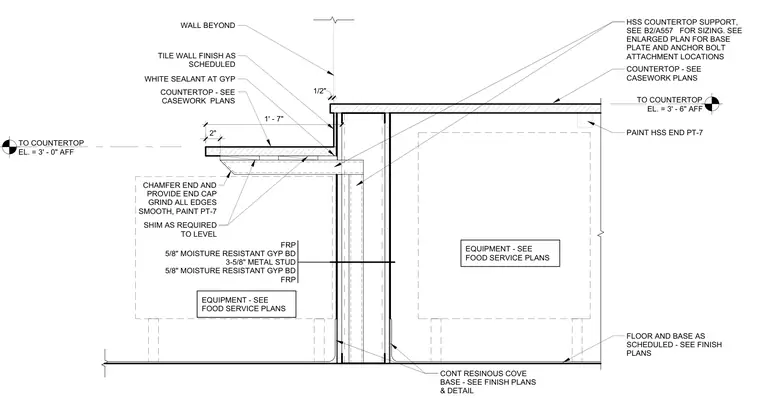

This wall and counter section details a high-low service counter configuration with tiered work surfaces at 3 feet 0 inches and 3 feet 6 inches above finished floor. The dividing wall consists of a 3-5/8 inch metal stud frame faced with moisture-resistant gypsum board and fiberglass reinforced plastic panels. Hollow structural section steel members cantilever out to support the lower countertop surface, complete with shim plates for leveling, chamfered end caps with ground edges, and PT-7 paint finish. White sealant is applied at the gypsum board and countertop junction. The floor receives a continuous resinous cove base alongside scheduled tile wall finishes and food service equipment integrated below.
TO COUNTERTOP EL. = 3' - 0" AFF TO COUNTERTOP EL. = 3' - 6" AFF WALL BEYOND EQUIPMENT - SEE FOOD SERVICE PLANS FRP 5/8" MOISTURE RESISTANT GYP BD 3-5/8" METAL STUD 5/8" MOISTURE RESISTANT GYP BD FRP FLOOR AND BASE AS SCHEDULED - SEE FINISH PLANS CONT RESINOUS COVE BASE - SEE FINISH PLANS & DETAIL PAINT HSS END PT-7 TILE WALL FINISH AS SCHEDULED 1/2" 1' - 7" COUNTERTOP - SEE CASEWORK PLANS EQUIPMENT - SEE FOOD SERVICE PLANS CHAMFER END AND PROVIDE END CAP GRIND ALL EDGES SMOOTH, PAINT PT-7 WHITE SEALANT AT GYP COUNTERTOP - SEE CASEWORK PLANS SHIM AS REQUIRED TO LEVEL 2" HSS COUNTERTOP SUPPORT, SEE FOR SIZING. SEE ENLARGED PLAN FOR BASE PLATE AND ANCHOR BOLT ATTACHMENT LOCATIONS B2/A557
