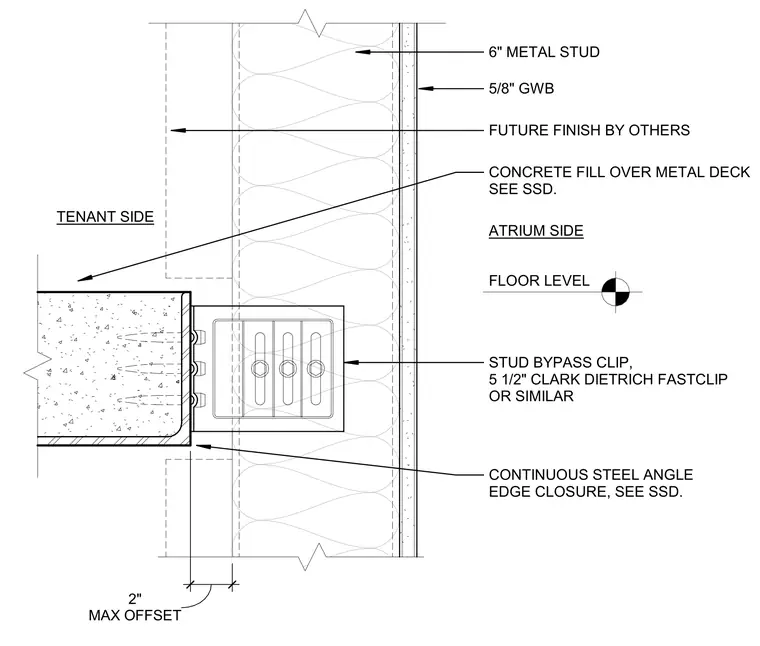

Six-inch cold-formed metal studs with five-eighths-inch gypsum wallboard extend past the floor level to form a balloon-framed atrium wall. A five-and-one-half-inch ClarkDietrich FastClip or similar bypass clip secures the metal stud to the floor edge. A continuous steel angle provides edge closure for the concrete fill over the metal deck, accommodating a two-inch maximum offset between the tenant side floor and the atrium edge.
6" METAL STUD 5/8" GWB STUD BYPASS CLIP, 5 1/2" CLARK DIETRICH FASTCLIP OR SIMILAR CONCRETE FILL OVER METAL DECK SEE SSD. CONTINUOUS STEEL ANGLE EDGE CLOSURE, SEE SSD. ATRIUM SIDE FLOOR LEVEL TENANT SIDE FUTURE FINISH BY OTHERS 2" MAX OFFSET
