Suspended gypsum board ceiling framing suspended from the underside of the floor or roof structure above using number twelve gauge vertical wire hangers spaced at a maximum of four feet on center. Main runners and one-and-a-half-inch channels are tied with number sixteen gauge galvanized tie wire or saddle ties, with exposed channels painted by the general contractor. Lateral stability is provided by vertical compression struts spaced at twelve feet on center, utilizing cold-formed metal studs or electrical metallic tubing sleeves. Splayed bracing wires and independent support clips at light fixture connections complete the seismic and lateral restraint assembly.

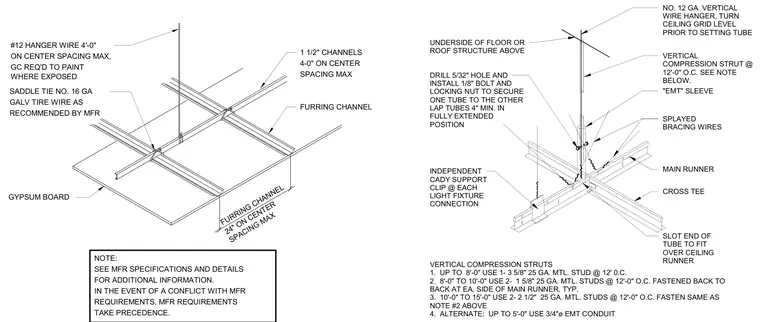

FURRING CHANNEL FURRING CHANNEL 24" ON CENTER SPACING MAX GYPSUM BOARD NOTE: SADDLE TIE NO. 16 GA GALV TIRE WIRE AS RECOMMENDED BY MFR #12 HANGER WIRE 4'-0" ON CENTER SPACING MAX, GC REQ'D TO PAINT 1 1/2" CHANNELS 4-0" ON CENTER SPACING MAX SEE MFR SPECIFICATIONS AND DETAILS FOR ADDITIONAL INFORMATION. IN THE EVENT OF A CONFLICT WITH MFR REQUIREMENTS, MFR REQUIREMENTS TAKE PRECEDENCE. WHERE EXPOSED VERTICAL COMPRESSION STRUT @ 12'-0" O.C. SEE NOTE BELOW. NO. 12 GA. VERTICAL WIRE HANGER, TURN CEILING GRID LEVEL PRIOR TO SETTING TUBE SLOT END OF TUBE TO FIT OVER CEILING RUNNER DRILL 5/32" HOLE AND INSTALL 1/8" BOLT AND LOCKING NUT TO SECURE ONE TUBE TO THE OTHER LAP TUBES 4" MIN. IN FULLY EXTENDED POSITION UNDERSIDE OF FLOOR OR ROOF STRUCTURE ABOVE INDEPENDENT CADY SUPPORT CLIP @ EACH LIGHT FIXTURE CONNECTION CROSS TEE MAIN RUNNER "EMT" SLEEVE SPLAYED BRACING WIRES VERTICAL COMPRESSION STRUTS 1. UP TO 8'-0" USE 1- 3 5/8" 25 GA. MTL. STUD @ 12' 0.C. 2. 8'-0" TO 10'-0" USE 2- 1 5/8" 25 GA. MTL. STUDS @ 12'-0" O.C. FASTENED BACK TO BACK AT EA. SIDE OF MAIN RUNNER, TYP. 3. 10'-0" TO 15'-0" USE 2- 2 1/2" 25 GA. MTL. STUDS @ 12'-0" O.C. FASTEN SAME AS NOTE #2 ABOVE 4. ALTERNATE: UP TO 5'-0" USE 3/4"ø EMT CONDUIT
